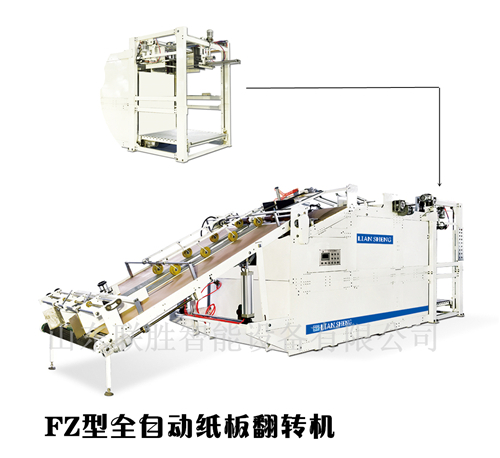

| 全自動紙板翻轉收紙機 | ||||
| Full Automatic Cardboard Fliping And Collecting Machine | ||||
| FZ 型全自動紙板翻轉收紙機是全自動裱紙機的配套產品， 是將裱貼好的紙板快速按規(guī)定的數量排列堆放整齊 ; | FZ Full Automatic Cardboard Flipping & Collecting Machine is a completly automatic machine to match with Laminating Machine.It is designed to arrange and stack the paper board in order quickly by specified quantity; | |||
| 可分 雙片和單片兩種機型； | Optional between double or single plate type; | |||
| 本機可智能控制，變頻調速自動高效， 集收紙、翻轉、堆垛、自動輸出、物流輸送等功能為一體 的紙板自動收紙設備。 | This machine adopts intelligent control, frequency conversion speed control is automatic and efficient, cabale of collecting, flipping, stacking, automatic discharging and logistics transportation. | |||
| 主要用于彩印紙面與單面瓦楞紙板 裱貼后自動收紙并堆積成垛。 | Mainly used for automatic stacking of printed and laminated paper board. | |||
| 本設備通過小垛正反面放置 的方式可有效防止裱貼后紙板變形同時可減輕人工收紙的 勞動強度，并減少用人數量. | The equipment can effectively prevent the deformation of printed or laminated surface by collecting the boards in small piles and at the same time, reduces the labor intensity and reduce the number of necessary workers. | |||
| 還可以根據用戶要求生產專 為平壓平模切機再翻轉自動上料機。 | We also make the automatic refliping feeding machine for the flat die cutting machine according to the requirements of the user. | |||
| 主要技術參數 | Parameters | |||
| 規(guī)格型號 | Model | FZ-1250 | ||
| 最大收紙尺寸（mm) | Max Paper Size(mm) | 1620*1250 | ||
| 最小收紙尺寸(mm) | Min Paper Size(mm) | 600*400 | ||
| 總功率(KW) | Power(KW) | 7 | ||
| 外形尺寸(長*寬*高m) | Dimension(L*W*H m) | 9*2.2*2.5 | ||
| 機械重量(噸） | Weight (Ton) | 8 | ||
